2x6W audio amplifier

A long time ago I disassembled the stereo power amplifier BA5406 from a old radio. With the datasheet from the internet I built a small amplifier out of it.

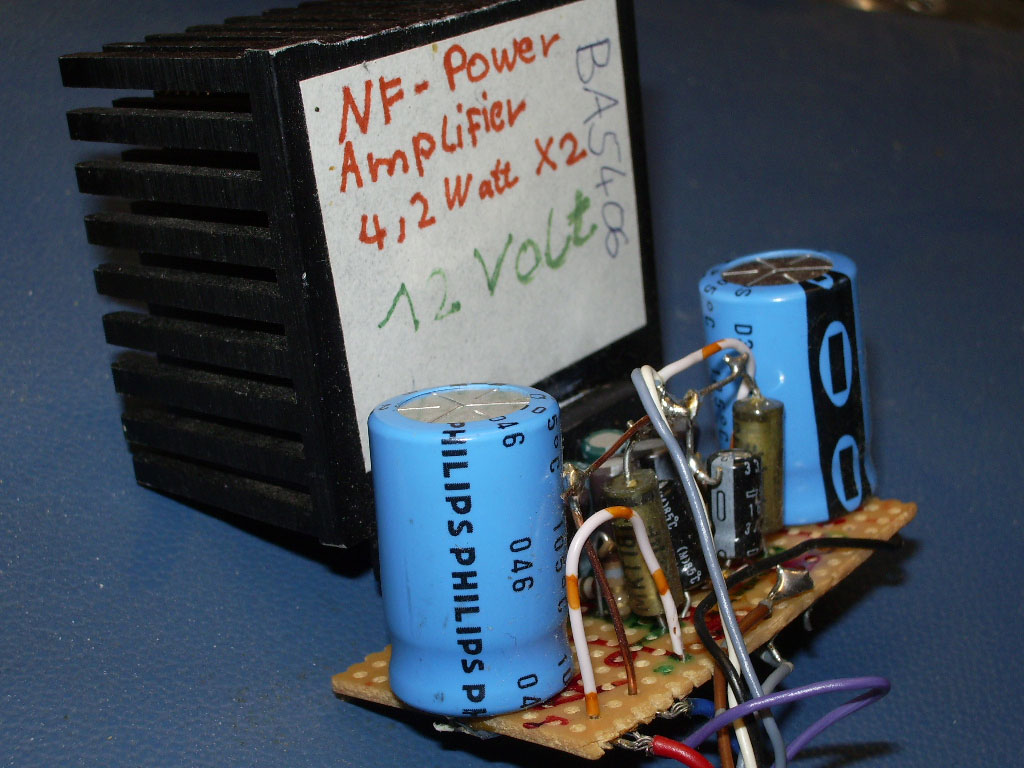

Picture: Construction

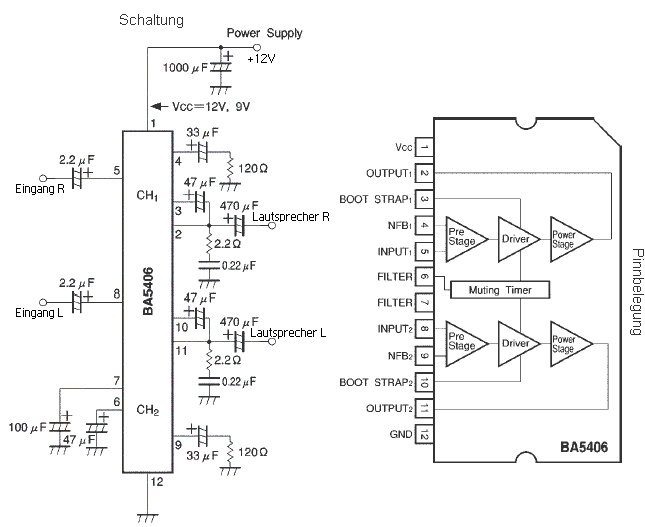

Schematic and pinout from the datasheet:

Picture: Circuit diagram

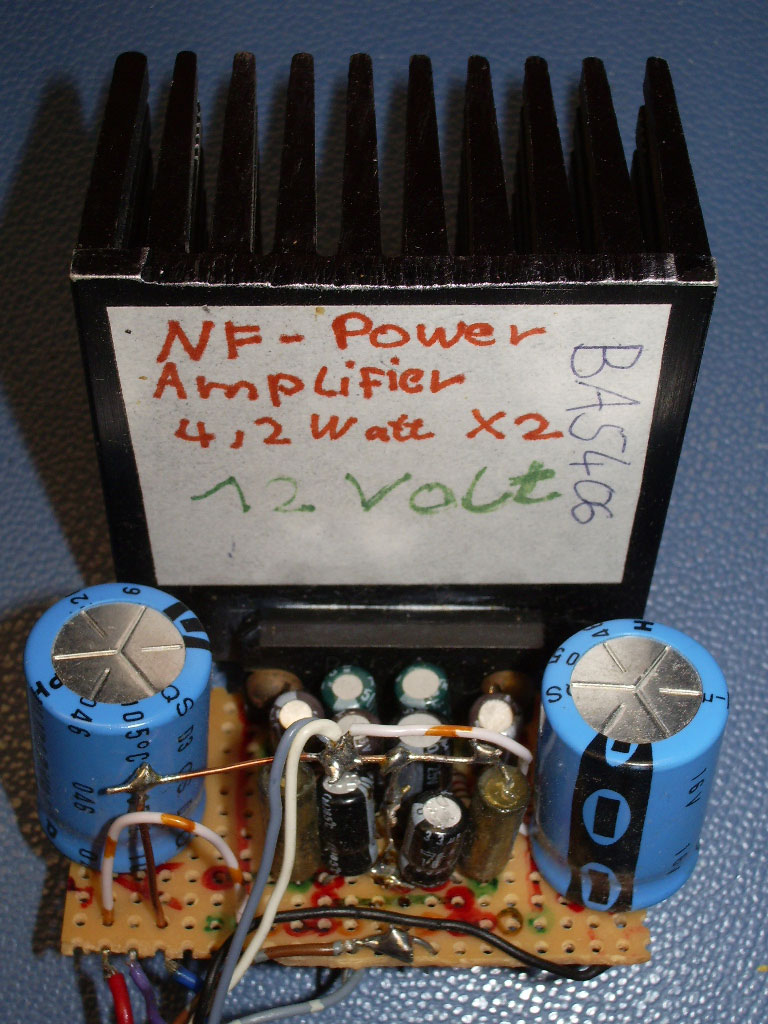

Picture: Top side of the board

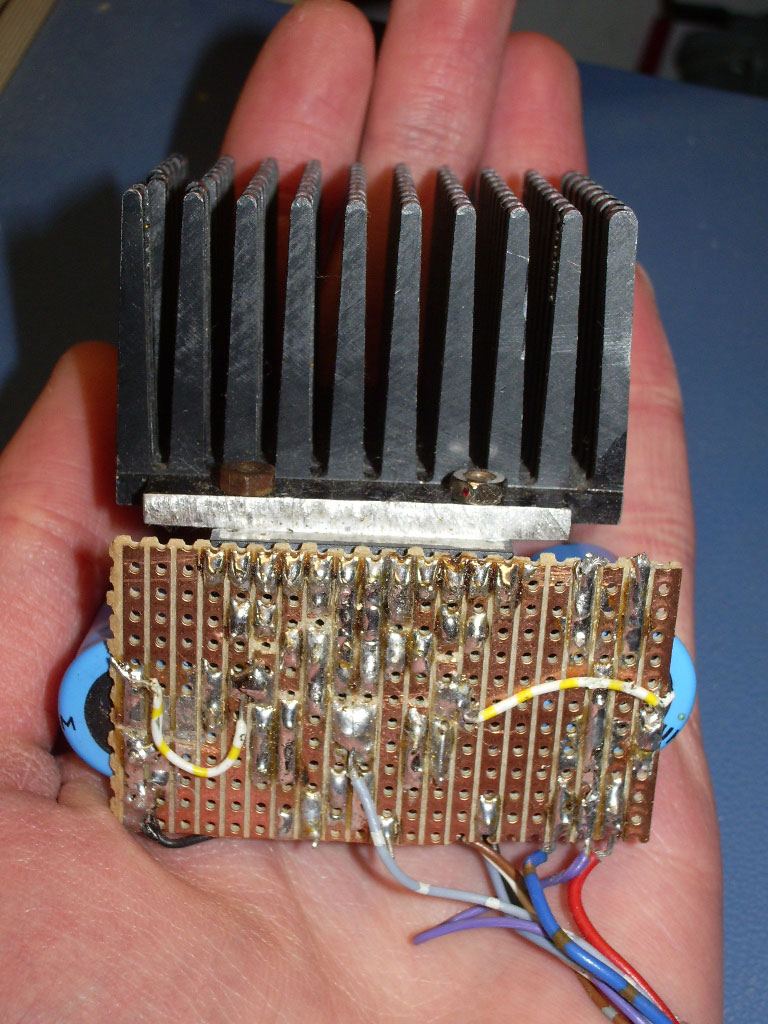

Picture: Bottom side of the board

Unfortunately after some time one channel got distorted, which I might have shorted by mistake. Therefore the TDA2030 is recommended for new designs, because it has appropriate protection circuits.
